feign10.12源码解析

[toc]

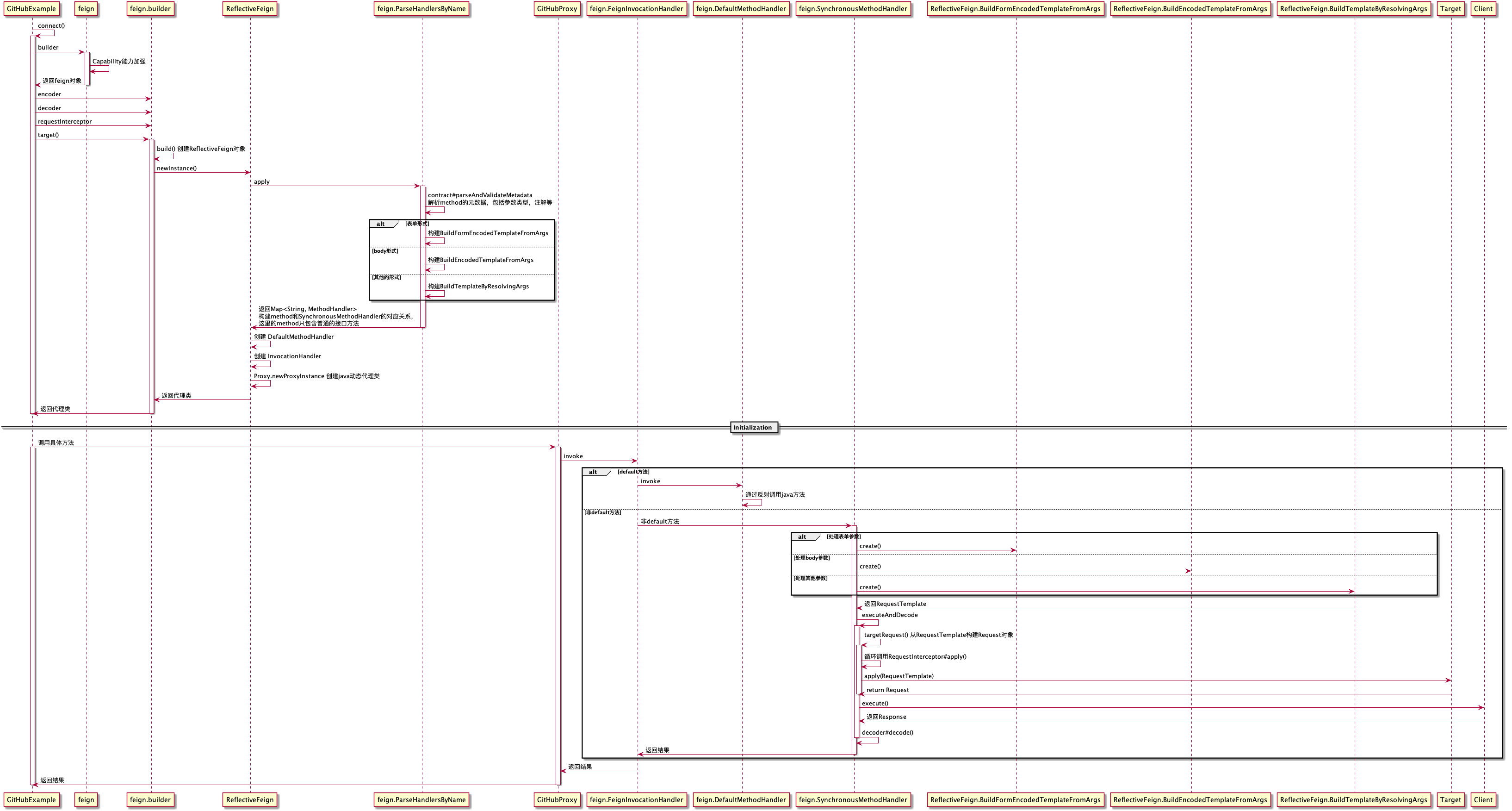

时序图

主要组件

Contract

Contract用于解析method源数据、参数类型和注解等。

默认使用feign.Contract.Default。注册处理了@Headers，@RequestLine，@Body，@Param等注解。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
public Default() {
      super.registerClassAnnotation(Headers.class, (header, data) -> {
        final String[] headersOnType = header.value();
        checkState(headersOnType.length > 0, "Headers annotation was empty on type %s.",
            data.configKey());
        final Map<String, Collection<String>> headers = toMap(headersOnType);
        headers.putAll(data.template().headers());
        data.template().headers(null); // to clear
        data.template().headers(headers);
      });
      super.registerMethodAnnotation(RequestLine.class, (ann, data) -> {
        final String requestLine = ann.value();
        checkState(emptyToNull(requestLine) != null,
            "RequestLine annotation was empty on method %s.", data.configKey());

        final Matcher requestLineMatcher = REQUEST_LINE_PATTERN.matcher(requestLine);
        if (!requestLineMatcher.find()) {
          throw new IllegalStateException(String.format(
              "RequestLine annotation didn't start with an HTTP verb on method %s",
              data.configKey()));
        } else {
          data.template().method(HttpMethod.valueOf(requestLineMatcher.group(1)));
          data.template().uri(requestLineMatcher.group(2));
        }
        data.template().decodeSlash(ann.decodeSlash());
        data.template()
            .collectionFormat(ann.collectionFormat());
      });
      super.regodAnnotation(Body.class, (ann, data) -> {
        final String body = ann.value();
        checkState(emptyToNull(body) != null, "Body annotation was empty on method %s.",
            data.configKey());
        if (body.indexOf('{') == -1) {
          data.template().body(body);
        } else {
          data.template().bodyTemplate(body);
        }
      });
  ...
  ...

对于我们平常使用的Spring来说，使用的是SpringMVC的注解。在spring-cloud-openfeign-core中，Spring提供了SpringMvcContract，注册了SpringMVC的注解。

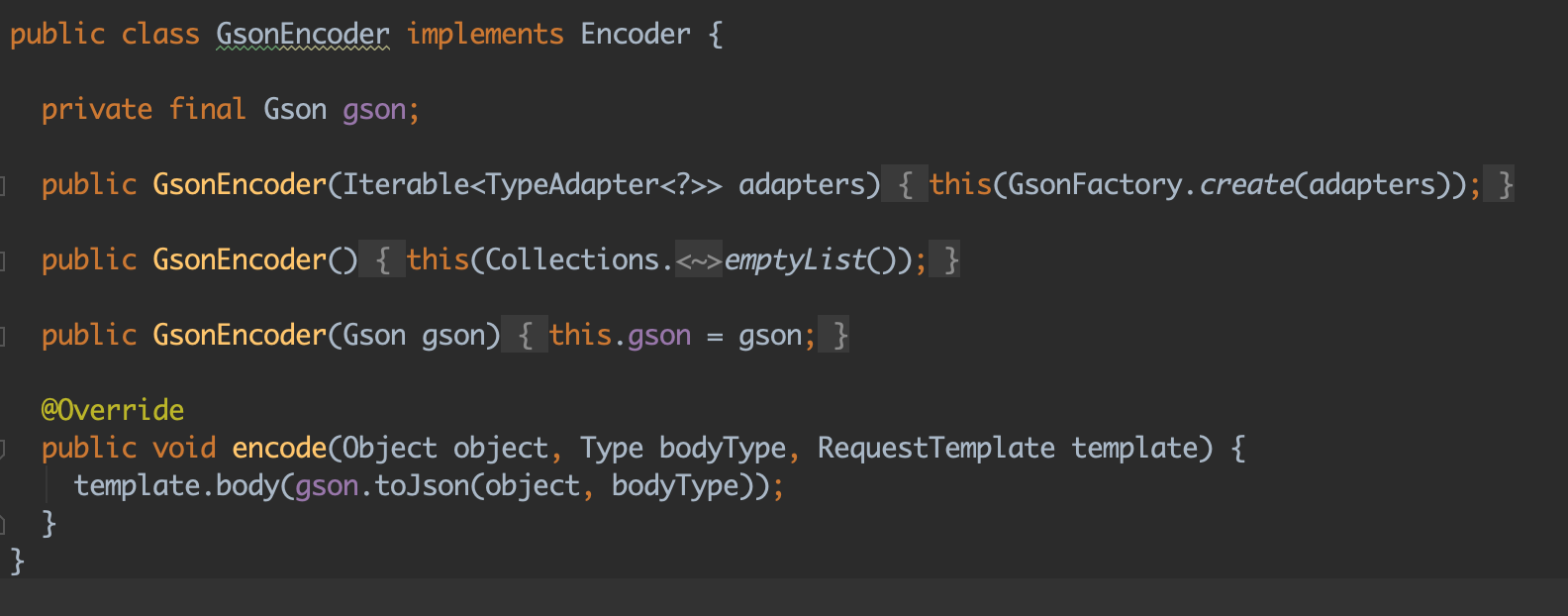

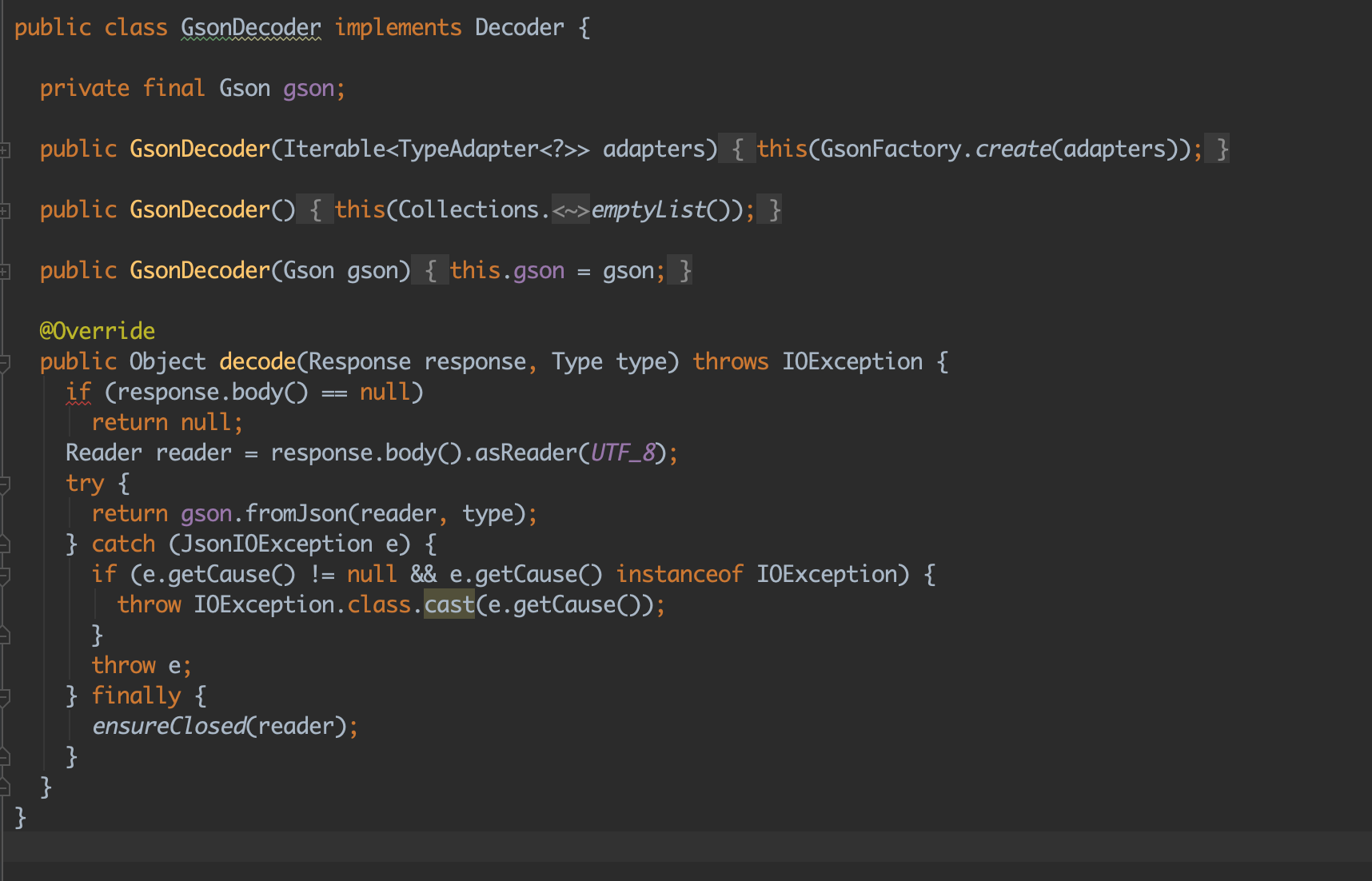

Encoder和Decoder

Encoder和Decoder主要对Request和Responde的编码和解码

Client

Client用于执行最终的http请求。

1
2
3
4
5
6
7
8
9
10
11
12
public interface Client {

  /**
   * Executes a request against its {@link Request#url() url} and returns a response.
   *
   * @param request safe to replay.
   * @param options options to apply to this request.
   * @return connected response, {@link Response.Body} is absent or unread.
   * @throws IOException on a network error connecting to {@link Request#url()}.
   */
  Response execute(Request request, Options options) throws IOException;
}

默认使用的是Client.Default，通过源码可以看到默认是使用HttpURLConnection来请求http的。

1
2
3
4
5
6
7
class Default implements Client {
     @Override
    public Response execute(Request request, Options options) throws IOException {
      HttpURLConnection connection = convertAndSend(request, options);
      return convertResponse(connection, request);
    }
}

Feign对HttpClient和OkHttp的支持。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
public final class ApacheHttpClient implements Client {
  private final HttpClient client;

  public ApacheHttpClient() {
    this(HttpClientBuilder.create().build());
  }
  @Override
  public Response execute(Request request, Request.Options options) throws IOException {
    HttpUriRequest httpUriRequest;
    try {
      httpUriRequest = toHttpUriRequest(request, options);
    } catch (URISyntaxException e) {
      throw new IOException("URL '" + request.url() + "' couldn't be parsed into a URI", e);
    }
    HttpResponse httpResponse = client.execute(httpUriRequest);
    return toFeignResponse(httpResponse, request);
  }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
public final class OkHttpClient implements Client {
  private final okhttp3.OkHttpClient delegate;

  public OkHttpClient() {
    this(new okhttp3.OkHttpClient());
  }

  public OkHttpClient(okhttp3.OkHttpClient delegate) {
    this.delegate = delegate;
  }
  @Override
  public feign.Response execute(feign.Request input, feign.Request.Options options)
      throws IOException {
    okhttp3.OkHttpClient requestScoped;
    if (delegate.connectTimeoutMillis() != options.connectTimeoutMillis()
        || delegate.readTimeoutMillis() != options.readTimeoutMillis()
        || delegate.followRedirects() != options.isFollowRedirects()) {
      requestScoped = delegate.newBuilder()
          .connectTimeout(options.connectTimeoutMillis(), TimeUnit.MILLISECONDS)
          .readTimeout(options.readTimeoutMillis(), TimeUnit.MILLISECONDS)
          .followRedirects(options.isFollowRedirects())
          .build();
    } else {
      requestScoped = delegate;
    }
    Request request = toOkHttpRequest(input);
    Response response = requestScoped.newCall(request).execute();
    return toFeignResponse(response, input).toBuilder().request(input).build();
  }
}

Target

Target比较没什么存在感，但是却关系到最后的Request生成。

1
2
3
public interface Target<T> {
  public Request apply(RequestTemplate input);
}

默认使用feign.Target.HardCodedTarget，用于将baseuri和请求的path进行拼接。

1
2
3
4
5
6
7
8
9
public static class HardCodedTarget<T> implements Target<T> {
     @Override
    public Request apply(RequestTemplate input) {
      if (input.url().indexOf("http") != 0) {
        input.target(url());
      }
      return input.request();
    }
}

在feign源码中，还有另外一个实现类LoadBalancingTarget。

1
2
3
4
5
6
7
8
9
10
11
12
13
public class LoadBalancingTarget<T> implements Target<T> {
   @Override
  public Request apply(RequestTemplate input) {
    Server currentServer = lb.chooseServer(null);
    String url = format("%s://%s%s", scheme, currentServer.getHostPort(), path);
    input.target(url);
    try {
      return input.request();
    } finally {
      lb.getLoadBalancerStats().incrementNumRequests(currentServer);
    }
  }
}

Capability

在feign客户端构建过程中，对以上组件都可以进行能力加强

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
  public Feign build() {
    // Capability 能力加强
    Client client = Capability.enrich(this.client, capabilities);
    Retryer retryer = Capability.enrich(this.retryer, capabilities);
    List<RequestInterceptor> requestInterceptors = this.requestInterceptors.stream()
        .map(ri -> Capability.enrich(ri, capabilities))
        .collect(Collectors.toList());
    Logger logger = Capability.enrich(this.logger, capabilities);
    Contract contract = Capability.enrich(this.contract, capabilities);
    Options options = Capability.enrich(this.options, capabilities);
    Encoder encoder = Capability.enrich(this.encoder, capabilities);
    Decoder decoder = Capability.enrich(this.decoder, capabilities);
    InvocationHandlerFactory invocationHandlerFactory =
        Capability.enrich(this.invocationHandlerFactory, capabilities);
    QueryMapEncoder queryMapEncoder = Capability.enrich(this.queryMapEncoder, capabilities);

    ...

  }
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
static <E> E enrich(E componentToEnrich, List<Capability> capabilities) {
  return capabilities.stream()
      .reduce(
          componentToEnrich,
          (component, capability) -> invoke(component, capability),
          (component, enrichedComponent) -> enrichedComponent);
}

static <E> E invoke(E target, Capability capability) {
  return Arrays.stream(capability.getClass().getMethods())
    	//找到方法名为"enrich"，并且返回类型相等的方法.
      .filter(method -> method.getName().equals("enrich"))
      .filter(method -> method.getReturnType().isInstance(target))
      .findFirst()
      .map(method -> {
        try {
          return (E) method.invoke(capability, target);
        } catch (IllegalAccessException | IllegalArgumentException
            | InvocationTargetException e) {
          throw new RuntimeException("Unable to enrich " + target, e);
        }
      })
      .orElse(target);
}

在feign源码中有这些实现类HystrixCapability,Metrics4Capability,Metrics5Capability,MicrometerCapability.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
public final class HystrixCapability implements Capability {

  private SetterFactory setterFactory = new SetterFactory.Default();
  private final Map<Class, Object> fallbacks = new HashMap<>();

  /**
   * Allows you to override hystrix properties such as thread pools and command keys.
   */
  public HystrixCapability setterFactory(SetterFactory setterFactory) {
    this.setterFactory = setterFactory;
    return this;
  }

  @Override
  public Contract enrich(Contract contract) {
    return new HystrixDelegatingContract(contract);
  }

  @Override
  public InvocationHandlerFactory enrich(InvocationHandlerFactory invocationHandlerFactory) {
    return (target, dispatch) -> new HystrixInvocationHandler(target, dispatch, setterFactory,
        fallbacks.containsKey(target.type())
            ? new FallbackFactory.Default<>(fallbacks.get(target.type()))
            : null);
  }

  public <E> Capability fallback(Class<E> api, E fallback) {
    fallbacks.put(api, fallback);

    return this;
  }

}

Spring整合

在spring-cloud-openfeign-core下，提供了Spring和feign的整合.

FeignClientFactoryBean：创建feign代理类

SpringMvcContract：解析methodMetaData

FeignClientsConfiguration：配置feign的一些组件

FeignAutoConfiguration：配置httpclient
